Cruise Alarming › Administration manual

SMCS alarm integration

Table of Contents

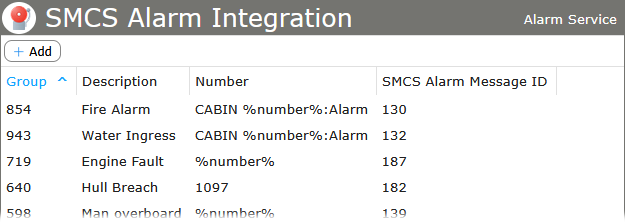

SMCSSafety Monitoring & Control System integration provides integration with the Callisto module SMCS Alarm. Integration with SMCS Alarm allows the Cruise Alarming service to play pre-recorded messages to phones when an alarm is triggered.

Group ID/Number of the alarming group (alarm system). When alarm for that group is received call will be placed to the phone which number is defined in ‘number’ field
Description A descriptive text about the alarm group/integration
Number

Number to which call will be placed (i.e., play a pre-recorded alarming message). The number can be static be extracted from an alarm message (if possible).

The format for extraction must be provided by entering the text and placing the placeholder %number% where the actual number is written in the alarming message.

Example: The system receives the following text message:

Fire alarm, sensor 8080 CABIN 1020:Alarm

To extract the phone number (in this case, 1020), the following expression can be used:

CABIN %number%:Alarm
SMCS Message ID The ID of a pre-recorded message as defined in the SMCS Alarm module
