Cruise Alarming › Cruise Alarming Mobile manual

Settings

Table of Contents

The Settings screen allows users to configure application behavior, including network information, appearance, debug options, server connection details, and sound preferences.

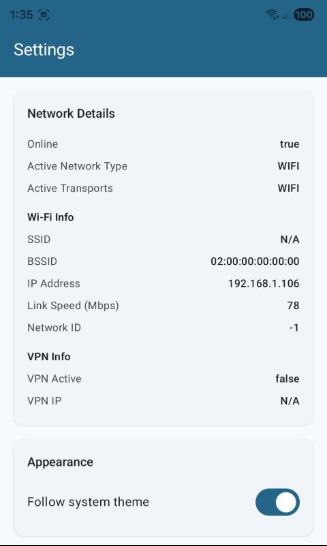

Settings screen upper half
Figure 10: Settings screen

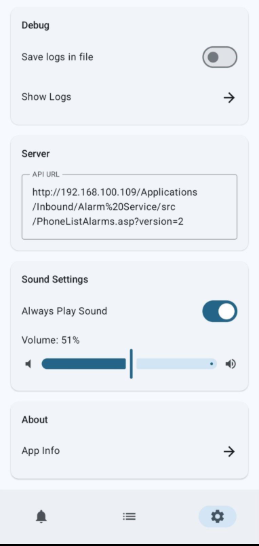

Settings screen lower half
Figure 10: Settings screen (continued)

Network Details

This read-only section provides current network status and configuration information, including online status, active network type, active transports, Wi-Fi info (SSID, BSSID, IP address, link speed, network ID), and VPN info.

Appearance

SettingDescription
Follow system themeToggle to synchronize the app's theme (light/dark) with the operating system settings.
Dark ModeToggle to manually enable or disable dark mode.

Debug

SettingDescription
Save logs in fileToggle to enable or disable saving application logs locally to the device.
Show Logs →Navigation link to the Log screen.
Share Logs →Navigation link to share log files via the standard system sharing sheet.

Server

SettingDescription
Server URLDisplays the HTTPS endpoint used to connect to the backend service (CALLISTO_IP_ADDRESS). This value is set via MDM or manually during setup.

Sound Settings

SettingDescription
Always Play SoundToggle to ensure notification sounds are always played, even in silent/vibrate mode (subject to DND and notification permissions).
VolumeHorizontal slider to adjust notification volume. Displayed as a percentage; internally maps to values 0–15.

About

SettingDescription
App Info →Navigation link to the About screen with version info, licenses, and copyright details.
